1. Find "Mobile Data Network"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c0bcc280-abf2-4de8-b367-e5e4f9abe776.png?width=212&height=458)
Press Mobile Service.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-f6fa2fdb-ae9a-4417-bcb7-d8c5cbb08fac.png?width=212&height=458)
Press Mobile Data Network.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0d58cafb-c460-449a-aaab-bd1408f4a6f3.png?width=212&height=458)
2. Enter APN

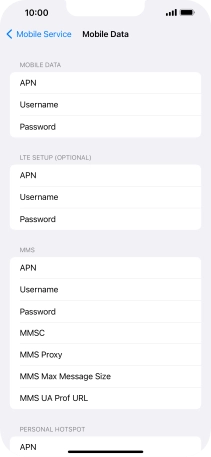

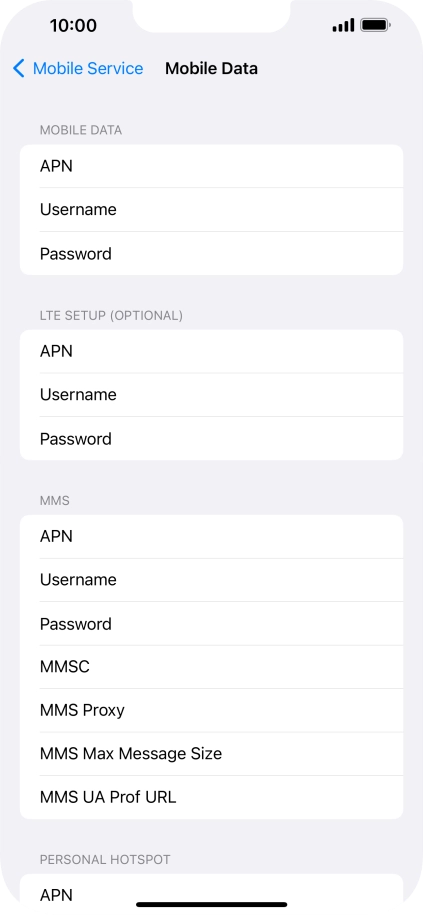

Press APN and key in wap.vodafone.co.uk.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-ec57a59a-d4a1-46ab-9dc7-b4e94fda0ad9.png?width=212&height=458)
wap.vodafone.co.uk
3. Enter username
Press Username and key in wap.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-ec57a59a-d4a1-46ab-9dc7-b4e94fda0ad9.png?width=212&height=458)
wap
4. Enter password
Press Password and key in wap.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-ec57a59a-d4a1-46ab-9dc7-b4e94fda0ad9.png?width=212&height=458)
wap
5. Enter picture messaging server
Press MMSC and key in http://mms.vodafone.co.uk/servlets/mms.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-ec57a59a-d4a1-46ab-9dc7-b4e94fda0ad9.png?width=212&height=458)
http://mms.vodafone.co.uk/servlets/mms
6. Enter IP address
Press MMS Proxy and key in 212.183.137.012:8799.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-ec57a59a-d4a1-46ab-9dc7-b4e94fda0ad9.png?width=212&height=458)
212.183.137.012:8799
7. Save settings
Press arrow left.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-ec57a59a-d4a1-46ab-9dc7-b4e94fda0ad9.png?width=212&height=458)
Slide your finger upwards starting from the bottom of the screen to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0d58cafb-c460-449a-aaab-bd1408f4a6f3.png?width=212&height=458)
8. Turn picture messaging on or off
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c0bcc280-abf2-4de8-b367-e5e4f9abe776.png?width=212&height=458)
Press Messages.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-32593b59-810e-469a-9bfb-5ad161e7f950.png?width=212&height=458)

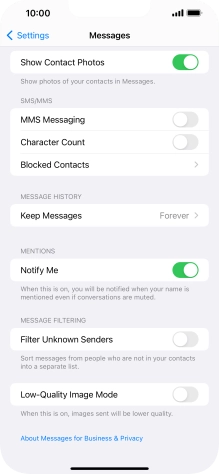

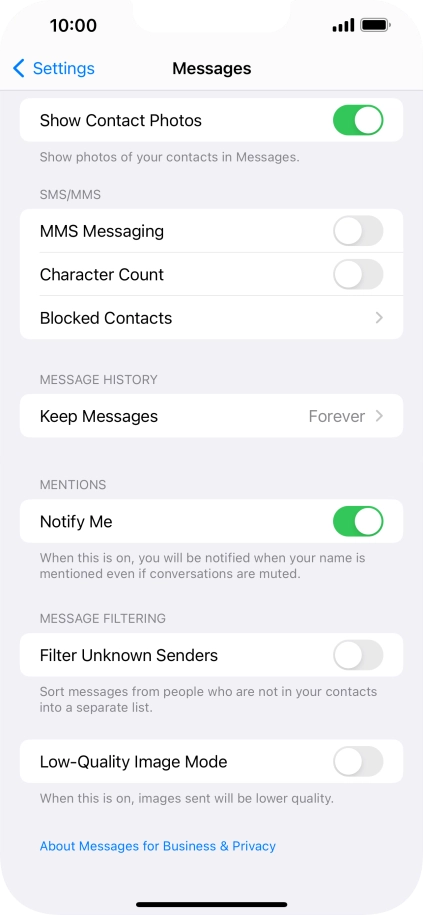

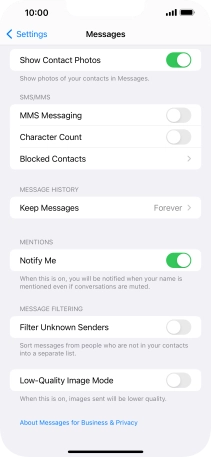

Press the indicator next to "MMS Messaging" to turn on the function.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-add1d7ae-51c7-469e-8792-86bb2c799b40.png?width=212&height=458)
9. Return to the home screen

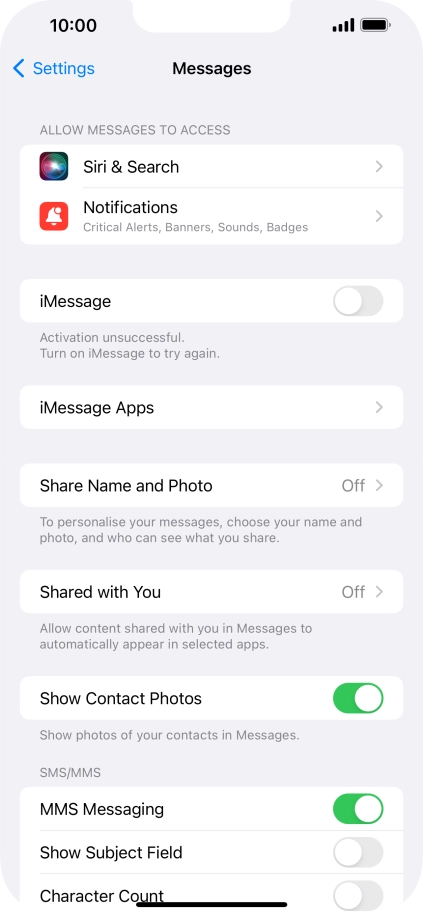

Slide your finger upwards starting from the bottom of the screen to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-5f440600-e202-4cac-afcb-8152cde83ff2.png?width=212&height=458)
