![Samsung Galaxy Xcover 5](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-05e53af0-262c-41e7-99b6-2b71ed8378a7.png?width=150&height=320)
Samsung Galaxy Xcover 5
Android 11.0
1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d0ceff7d-4059-460e-852c-3f907c304854.png?width=190&height=394)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e956f5b6-0b42-4f54-bebe-34b5220b4001.png?width=190&height=394)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-c27e3349-d49e-43bd-a604-a7f435dd2da7.png?width=190&height=394)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-02806ebd-c3de-4a47-a66e-c65cd14d7587.png?width=190&height=394)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-715fca1c-68e2-4c92-8440-0ac5e366729d.png?width=190&height=394)
2. Create new data connection

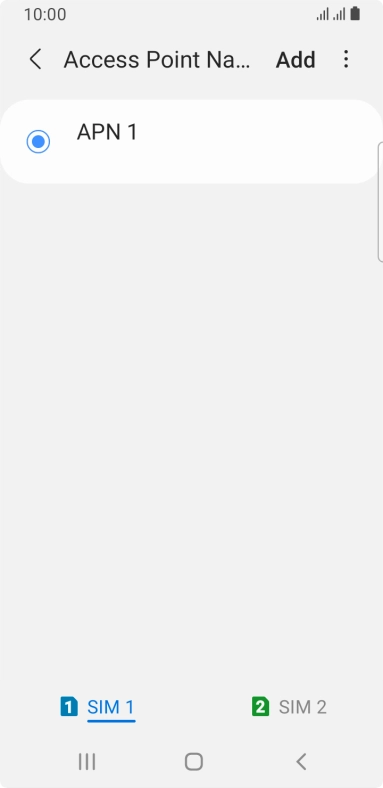

Press the required SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-87d3daa9-83d1-4ce4-ac3b-e8f0aab6f79c.png?width=190&height=394)
Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-87d3daa9-83d1-4ce4-ac3b-e8f0aab6f79c.png?width=190&height=394)

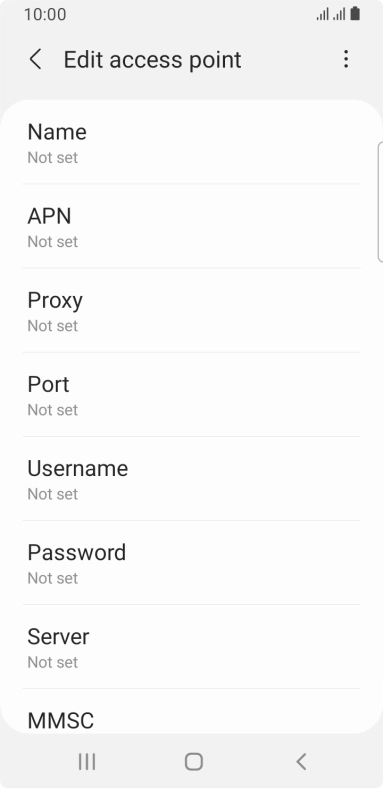

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d9c06529-3978-400c-bafd-213817451c5a.png?width=190&height=394)

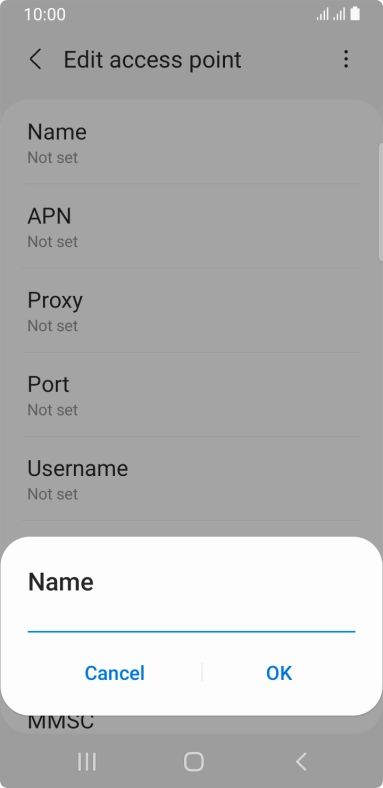

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d144652c-1185-49dd-a58a-48d3497adf41.png?width=190&height=394)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d9c06529-3978-400c-bafd-213817451c5a.png?width=190&height=394)

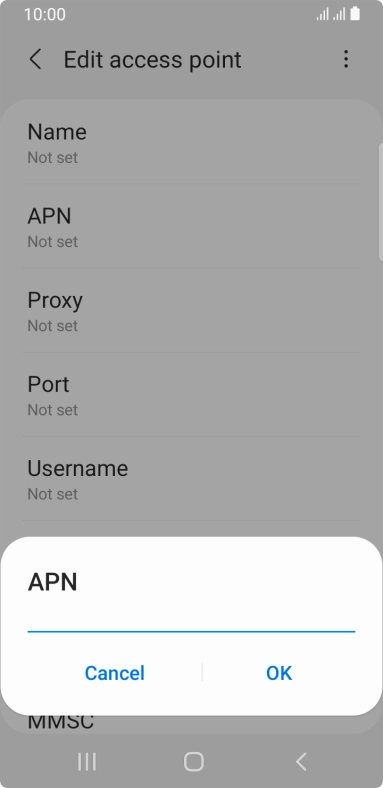

Key in wap.vodafone.co.uk and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-87c44919-2789-4472-bbff-d9b866faf541.png?width=190&height=394)
wap.vodafone.co.uk
4. Enter username
Press Username.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d9c06529-3978-400c-bafd-213817451c5a.png?width=190&height=394)
Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-814ffab3-0343-41e1-9310-013de127929a.png?width=190&height=394)
wap
5. Enter password
Press Password.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d9c06529-3978-400c-bafd-213817451c5a.png?width=190&height=394)
Key in wap and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-b7a82095-471d-413a-b8c3-917c57ebcf9d.png?width=190&height=394)
wap
6. Enter country code

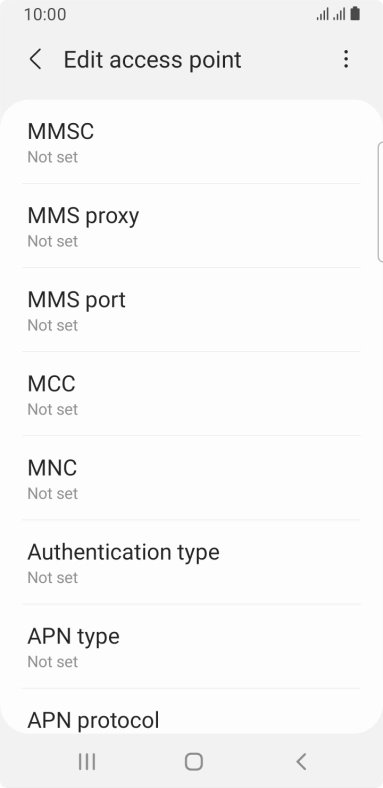

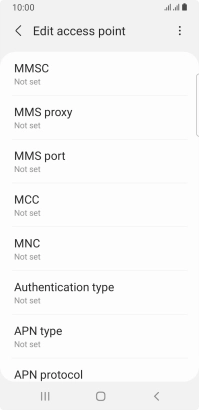

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d4661a48-f049-4498-86c3-ec64a1436fed.png?width=190&height=394)
Key in 234 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e14b2948-f79e-4ab8-978c-c2131c0db021.png?width=190&height=394)
234
7. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d4661a48-f049-4498-86c3-ec64a1436fed.png?width=190&height=394)

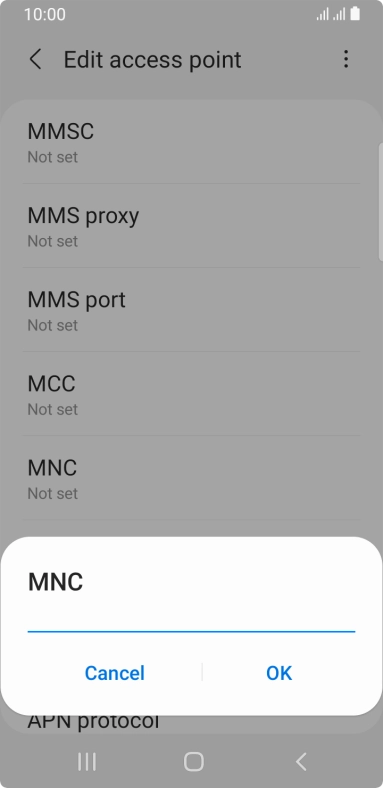

Key in 15 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d67e3b18-5a04-411b-a0c9-651907411a10.png?width=190&height=394)
15
8. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d4661a48-f049-4498-86c3-ec64a1436fed.png?width=190&height=394)

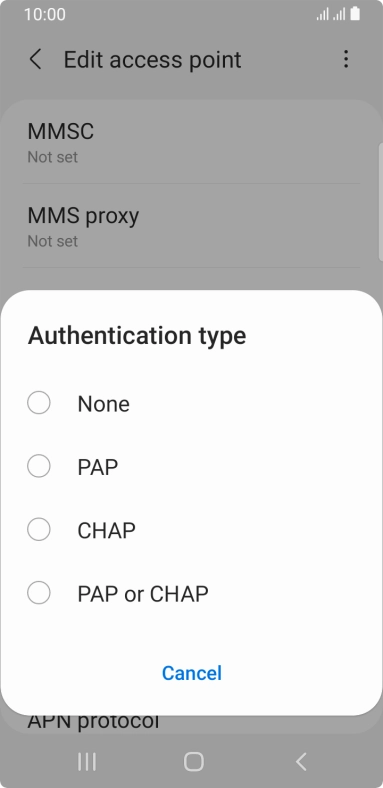

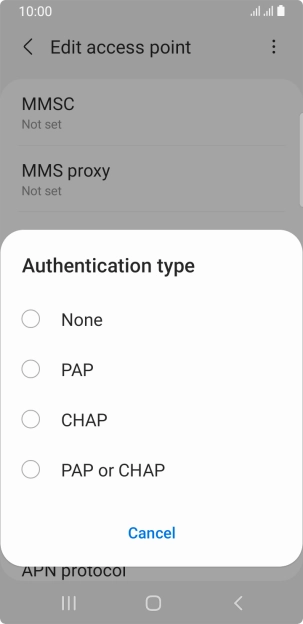

Press None.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-da16e30a-8659-4e27-b456-8a77d59f70c8.png?width=190&height=394)
9. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d4661a48-f049-4498-86c3-ec64a1436fed.png?width=190&height=394)

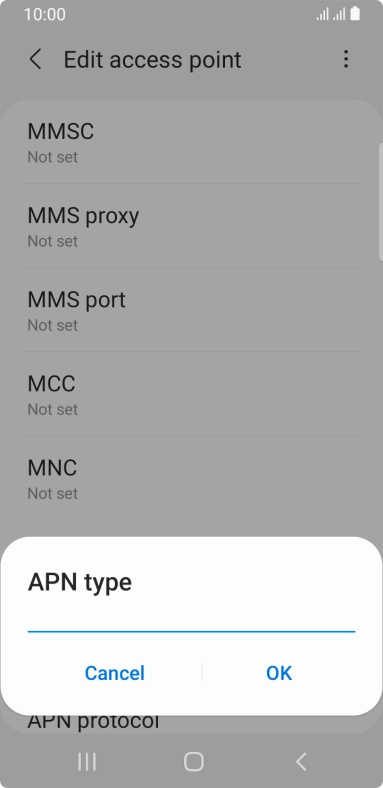

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e044bd59-884a-40df-8fc6-163f338deb13.png?width=190&height=394)
default
10. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-d4661a48-f049-4498-86c3-ec64a1436fed.png?width=190&height=394)

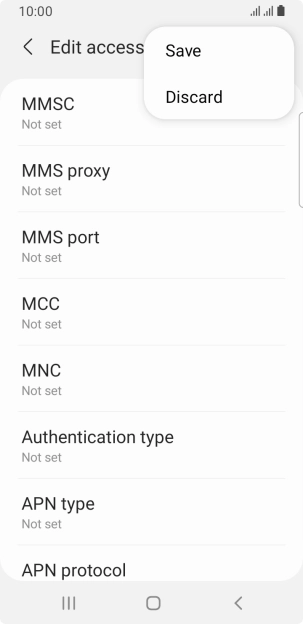

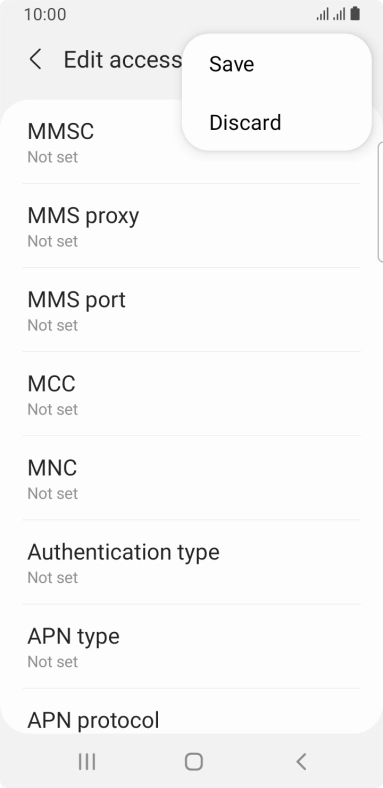

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-0442aae5-1961-4e51-969a-50471f2c9526.png?width=190&height=394)

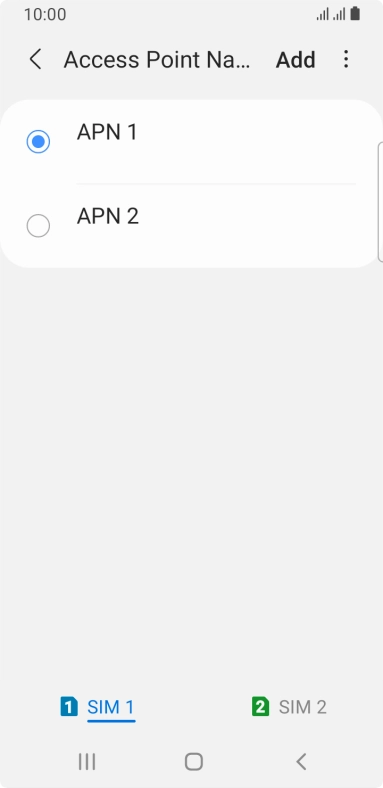

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-db4e24f4-1b7d-4d75-a976-877d7039b17b.png?width=190&height=394)
11. Return to the home screen

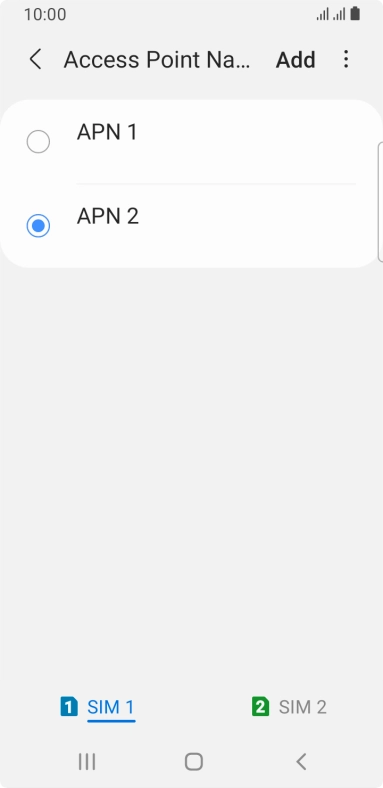

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-3e7a6f25-daff-4565-b45f-8a06ba0cf327.png?width=190&height=394)
