Samsung Galaxy Xcover 5

Samsung Galaxy Xcover 5

Android 11.0

Set up your Samsung Galaxy Xcover 5 Android 11.0 for picture messaging

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 32

1. Find "Access Point Names"

Slide two fingers downwards starting from the top of the screen.

Step 2 of 32

1. Find "Access Point Names"

Press the settings icon.

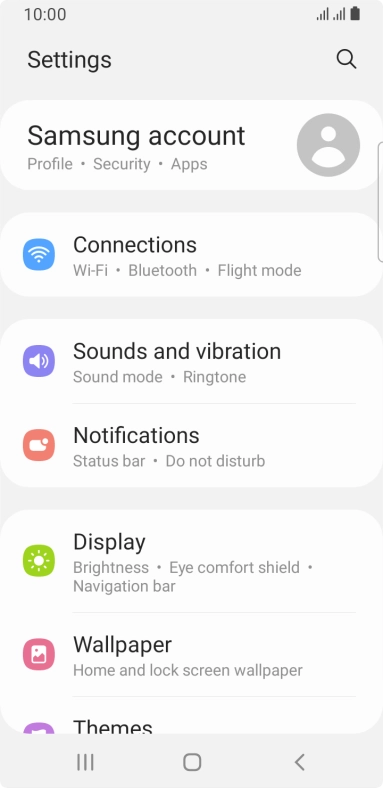

Step 3 of 32

1. Find "Access Point Names"

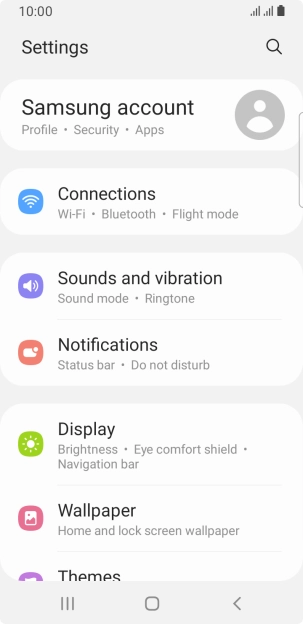

Press Connections.

Step 4 of 32

1. Find "Access Point Names"

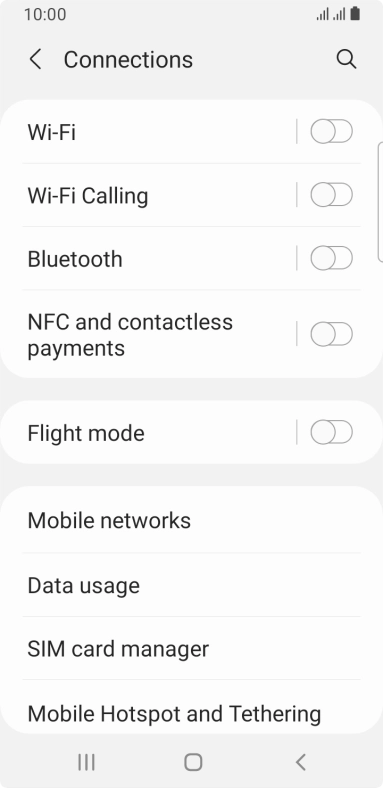

Press Mobile networks.

Step 5 of 32

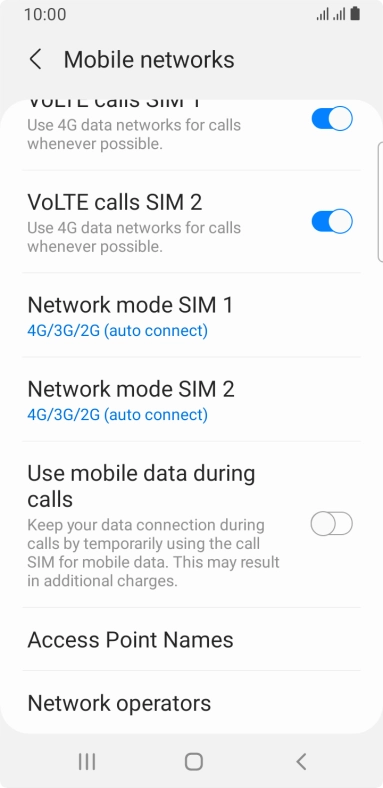

1. Find "Access Point Names"

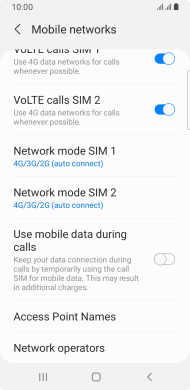

Press Access Point Names.

Step 6 of 32

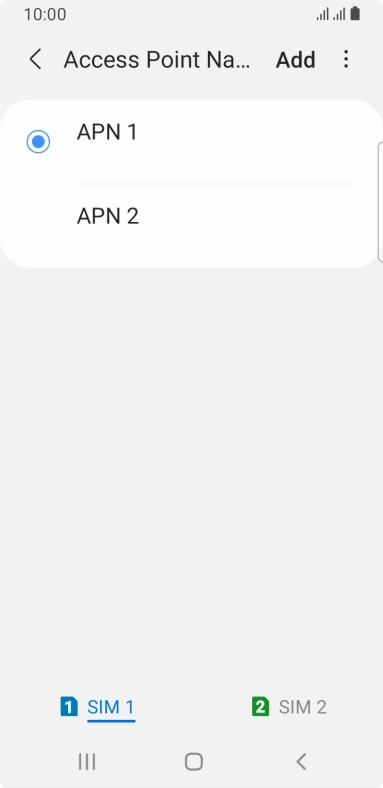

2. Create new data connection

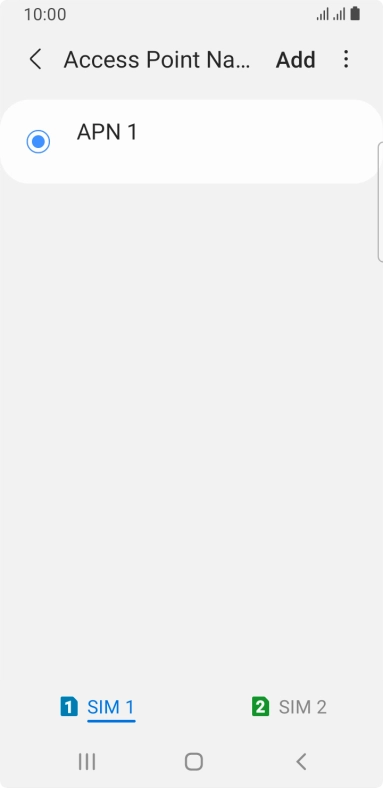

Press the required SIM.

Step 7 of 32

2. Create new data connection

Press Add.

Step 8 of 32

2. Create new data connection

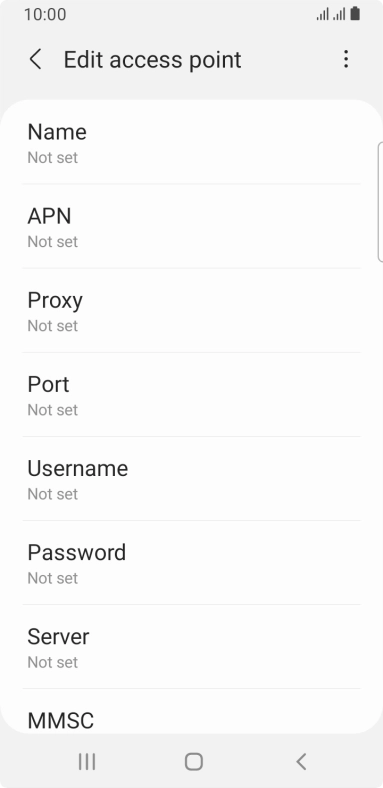

Press Name.

Vodafone MMS
Step 9 of 32

2. Create new data connection

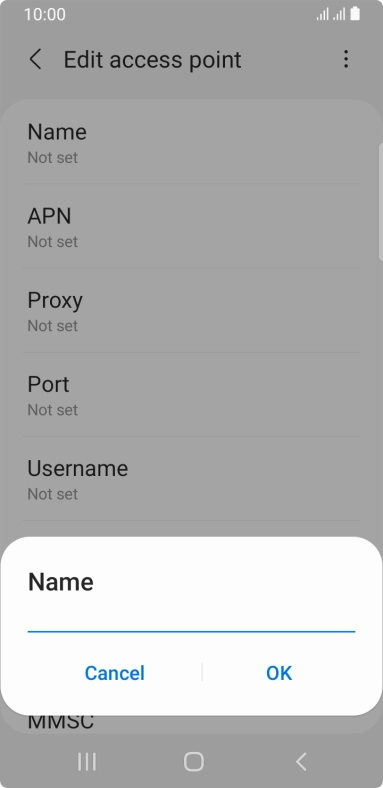

Key in Vodafone MMS and press OK.

Step 10 of 32

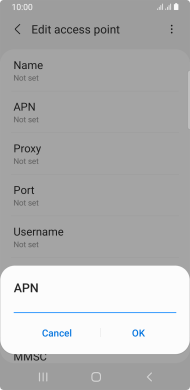

3. Enter APN

Press APN.

wap.vodafone.co.uk
Step 11 of 32

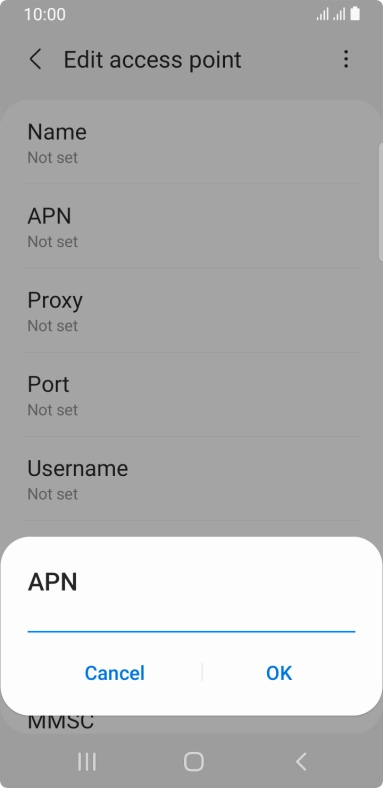

3. Enter APN

Key in wap.vodafone.co.uk and press OK.

Step 12 of 32

4. Enter username

Press Username.

wap
Step 13 of 32

4. Enter username

Key in wap and press OK.

Step 14 of 32

5. Enter password

Press Password.

wap
Step 15 of 32

5. Enter password

Key in wap and press OK.

Step 16 of 32

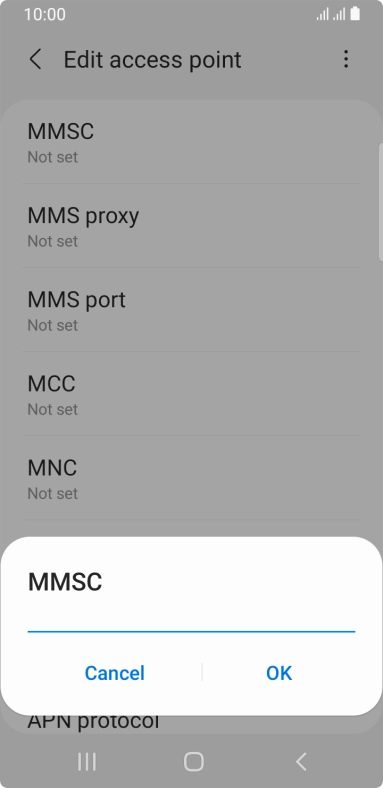

6. Enter MMSC

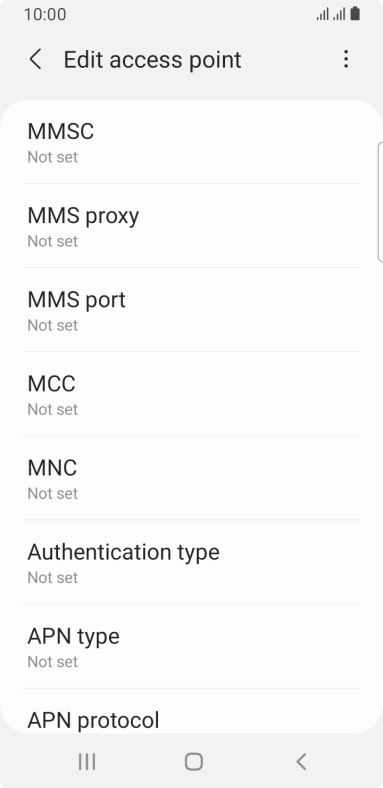

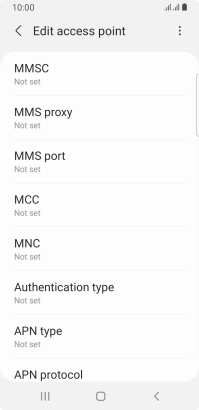

Press MMSC.

http://mms.vodafone.co.uk/servlets/mms

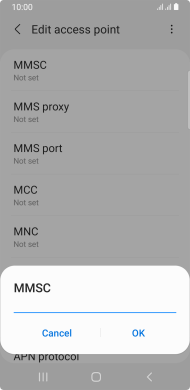

Step 17 of 32

6. Enter MMSC

Key in http://mms.vodafone.co.uk/servlets/mms and press OK.

Step 18 of 32

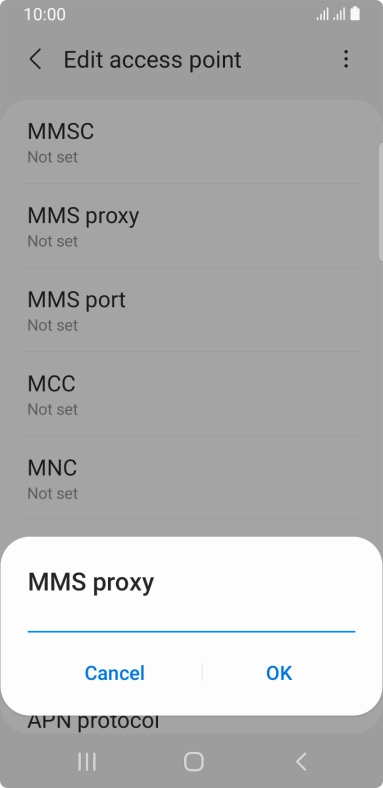

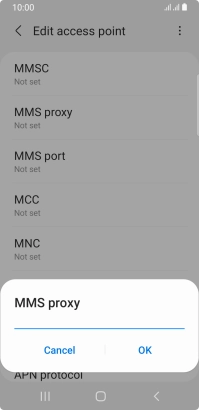

7. Enter IP address

Press MMS proxy.

212.183.137.012
Step 19 of 32

7. Enter IP address

Key in 212.183.137.012 and press OK.

Step 20 of 32

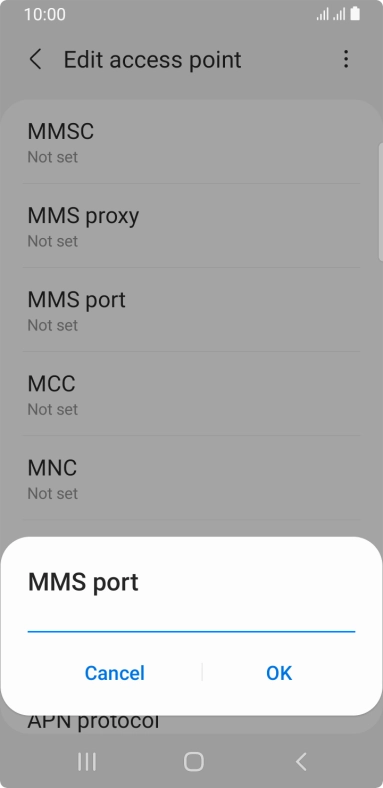

8. Enter port number

Press MMS port.

8799
Step 21 of 32

8. Enter port number

Key in 8799 and press OK.

Step 22 of 32

9. Enter country code

Press MCC.

234
Step 23 of 32

9. Enter country code

Key in 234 and press OK.

Step 24 of 32

10. Enter network code

Press MNC.

15

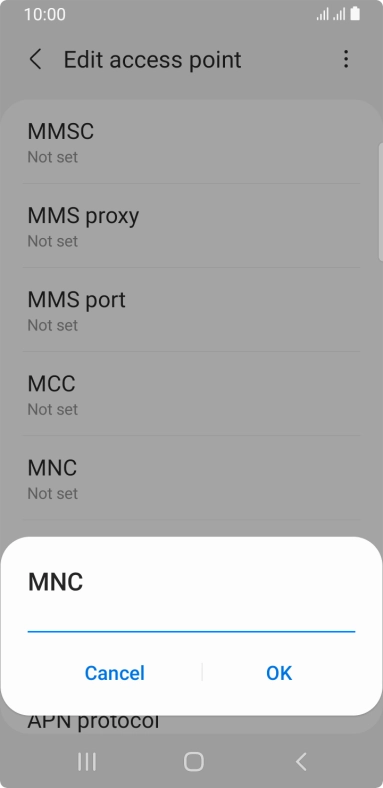

Step 25 of 32

10. Enter network code

Key in 15 and press OK.

Step 26 of 32

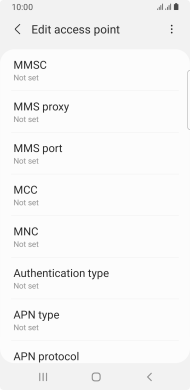

11. Select authentication type

Press Authentication type.

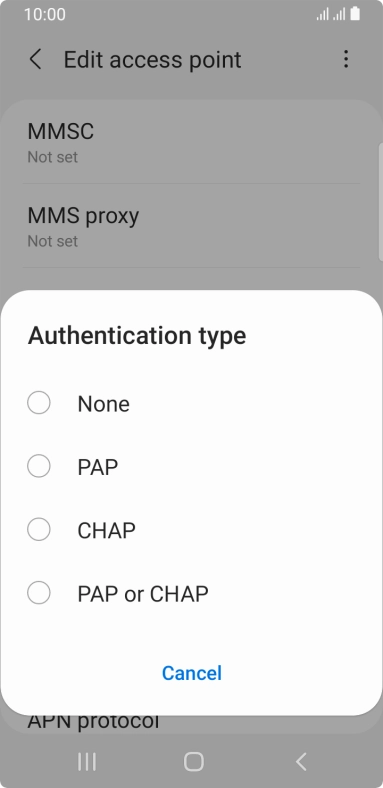

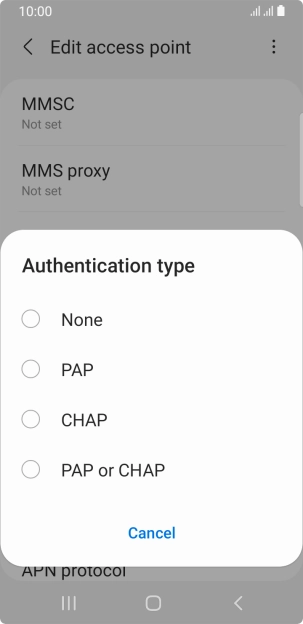

Step 27 of 32

11. Select authentication type

Press None.

Step 28 of 32

12. Enter APN type

Press APN type.

mms
Step 29 of 32

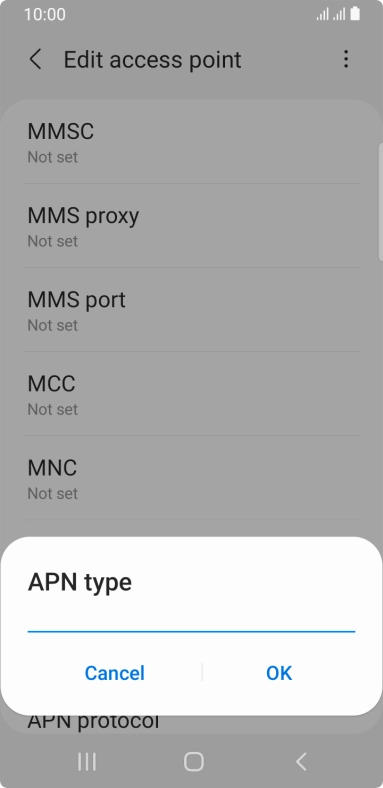

12. Enter APN type

Key in mms and press OK.

Step 30 of 32

13. Save data connection

Press the menu icon.

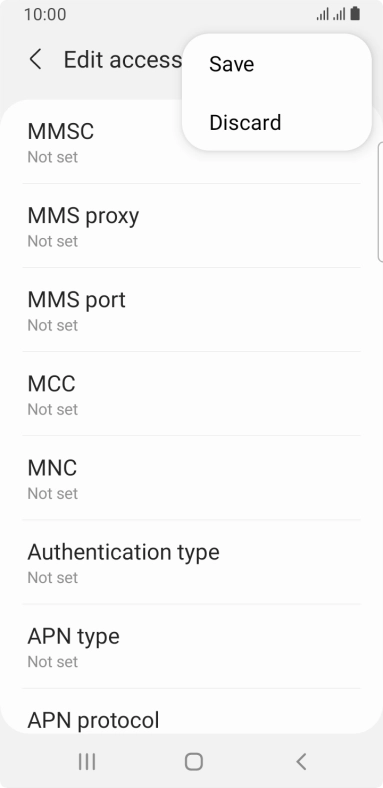

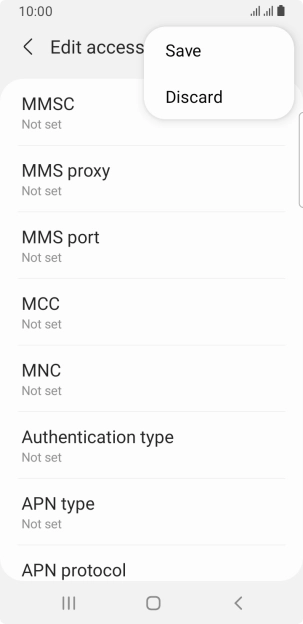

Step 31 of 32

13. Save data connection

Press Save.

Step 32 of 32

14. Return to the home screen

Press the Home key to return to the home screen.

1. Find "Access Point Names"

Slide two fingers downwards starting from the top of the screen.
Press the settings icon.
Press Connections.
Press Mobile networks.
Press Access Point Names.

2. Create new data connection

Press the required SIM.
Press Add.
Press Name.
Key in Vodafone MMS and press OK.
Vodafone MMS

3. Enter APN

Press APN.
Key in wap.vodafone.co.uk and press OK.
wap.vodafone.co.uk

4. Enter username

Press Username.
Key in wap and press OK.
wap

5. Enter password

Press Password.
Key in wap and press OK.
wap

6. Enter MMSC

Press MMSC.
Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
http://mms.vodafone.co.uk/servlets/mms

7. Enter IP address

Press MMS proxy.
Key in 212.183.137.012 and press OK.
212.183.137.012

8. Enter port number

Press MMS port.
Key in 8799 and press OK.
8799

9. Enter country code

Press MCC.
Key in 234 and press OK.
234

10. Enter network code

Press MNC.
Key in 15 and press OK.
15

11. Select authentication type

Press Authentication type.
Press None.

12. Enter APN type

Press APN type.
Key in mms and press OK.
mms

13. Save data connection

Press the menu icon.
Press Save.

14. Return to the home screen

Press the Home key to return to the home screen.
