TCL 306

TCL 306

Android 12.0

Set up your TCL 306 Android 12.0 for picture messaging

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 31

1. Find "Access Point Names"

Slide two fingers downwards starting from the top of the screen.

Step 2 of 31

1. Find "Access Point Names"

Press the settings icon.

Step 3 of 31

1. Find "Access Point Names"

Press SIM card & mobile network.

Step 4 of 31

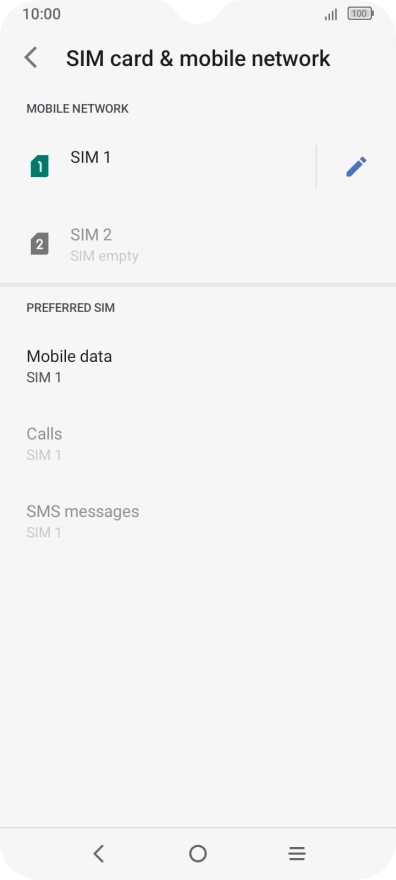

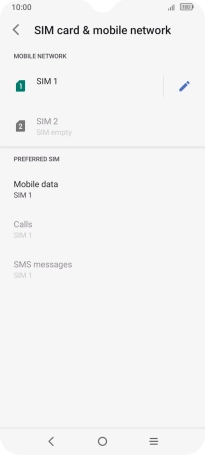

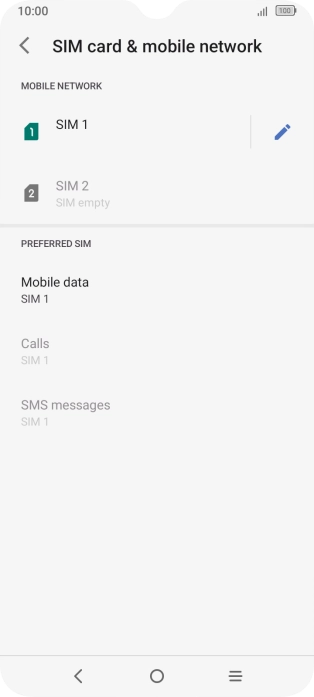

1. Find "Access Point Names"

Press the name of the SIM.

Step 5 of 31

1. Find "Access Point Names"

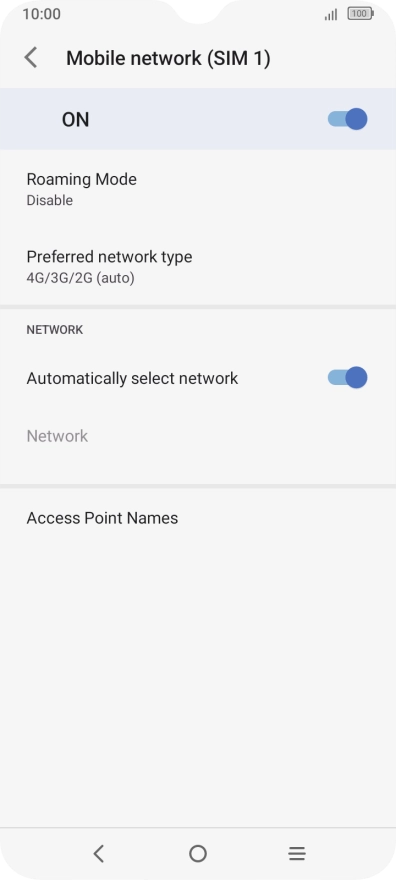

Press Access Point Names.

Step 6 of 31

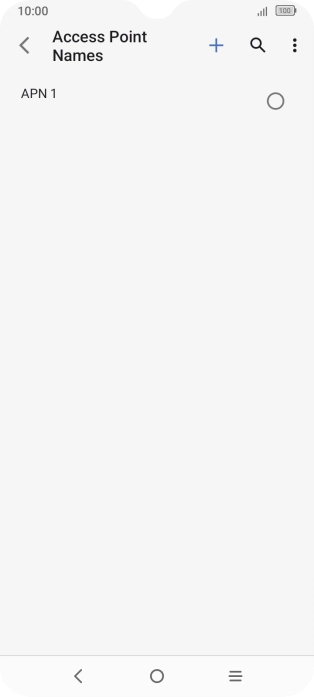

2. Create new data connection

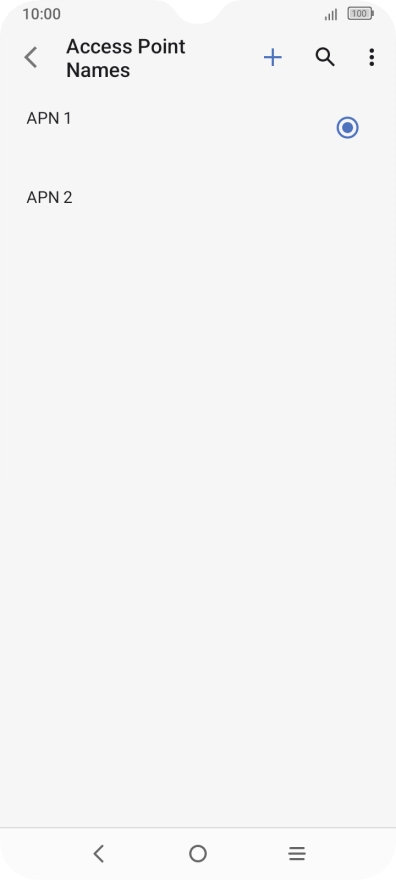

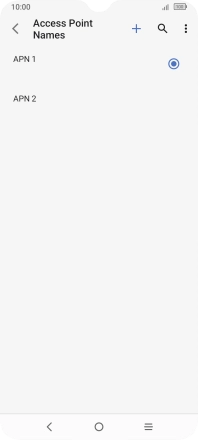

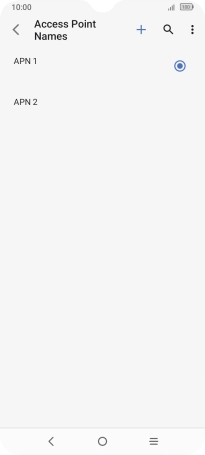

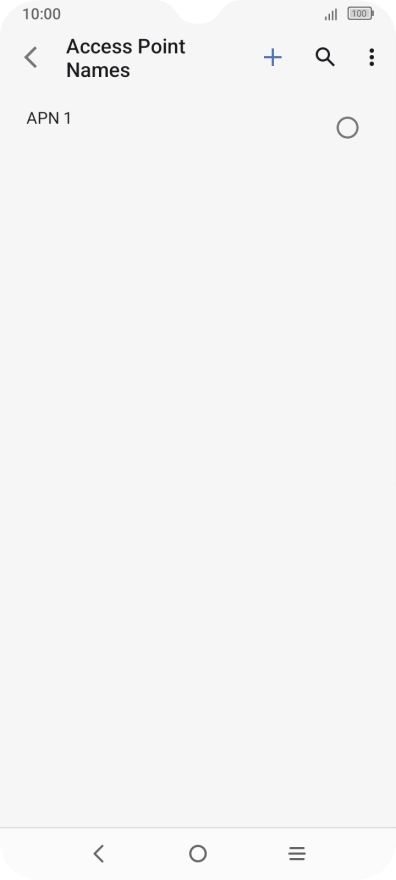

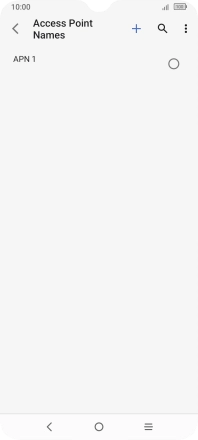

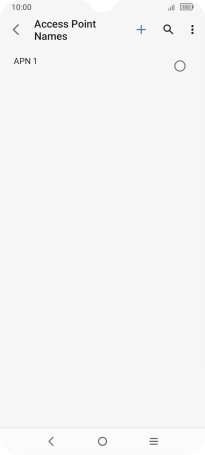

Press the new data connection icon.

Step 7 of 31

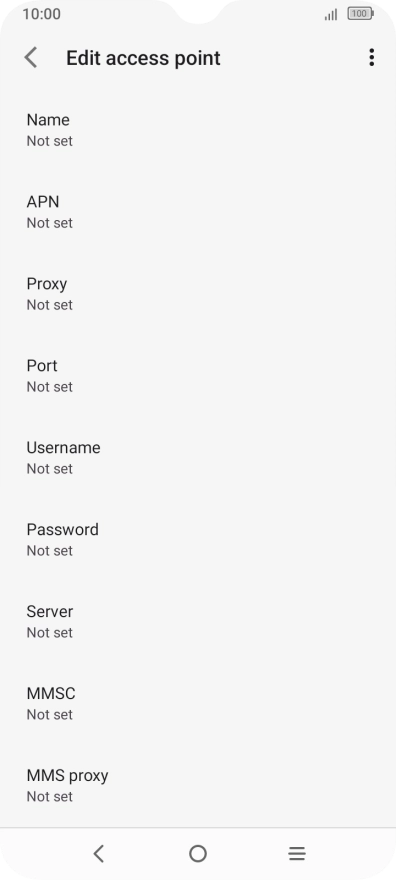

2. Create new data connection

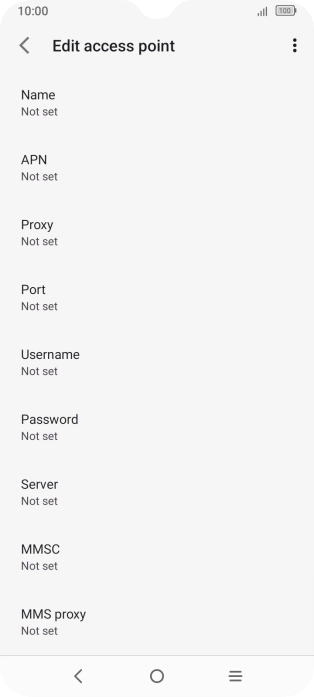

Press Name.

Vodafone MMS
Step 8 of 31

2. Create new data connection

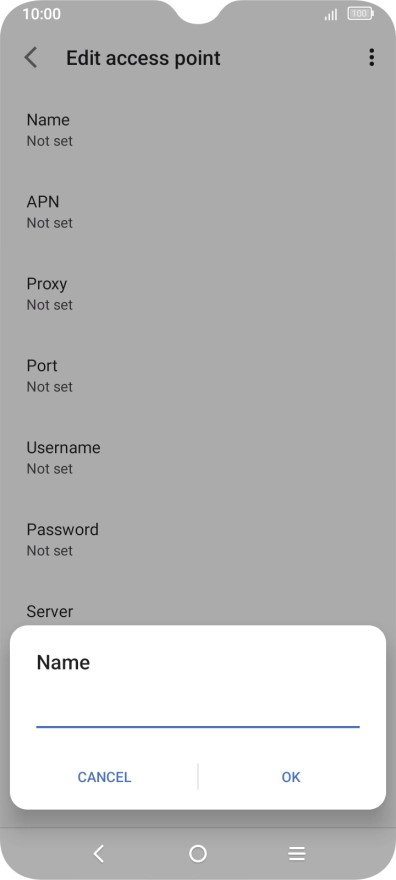

Key in Vodafone MMS and press OK.

Step 9 of 31

3. Enter APN

Press APN.

wap.vodafone.co.uk
Step 10 of 31

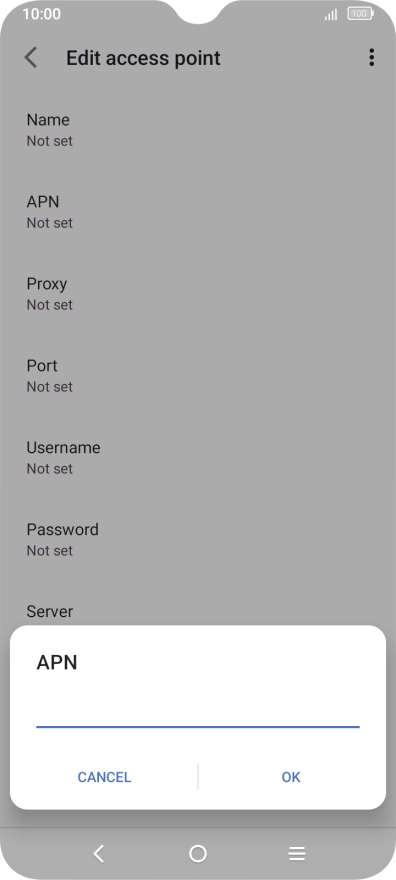

3. Enter APN

Key in wap.vodafone.co.uk and press OK.

Step 11 of 31

4. Enter username

Press Username.

wap
Step 12 of 31

4. Enter username

Key in wap and press OK.

Step 13 of 31

5. Enter password

Press Password.

wap
Step 14 of 31

5. Enter password

Key in wap and press OK.

Step 15 of 31

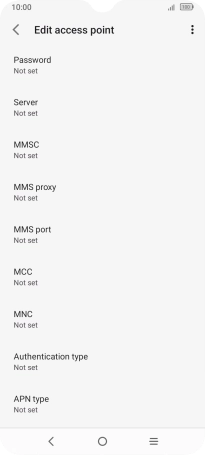

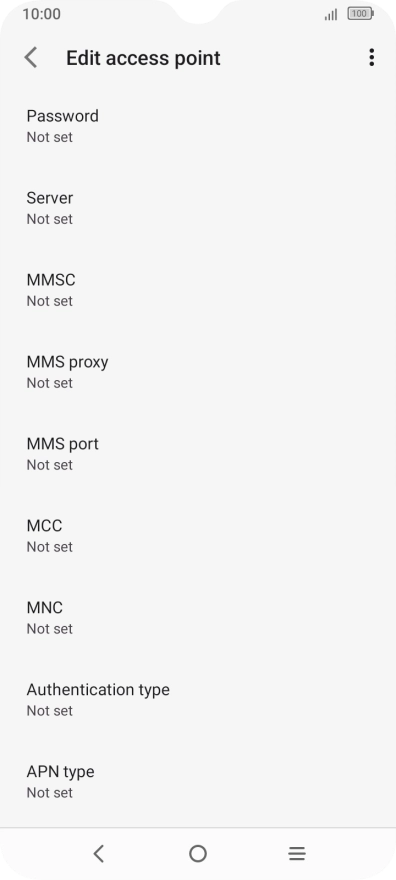

6. Enter picture messaging server

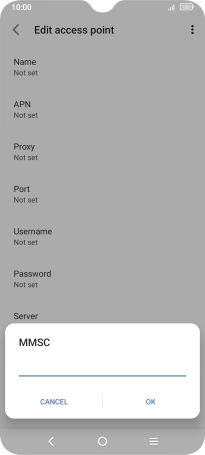

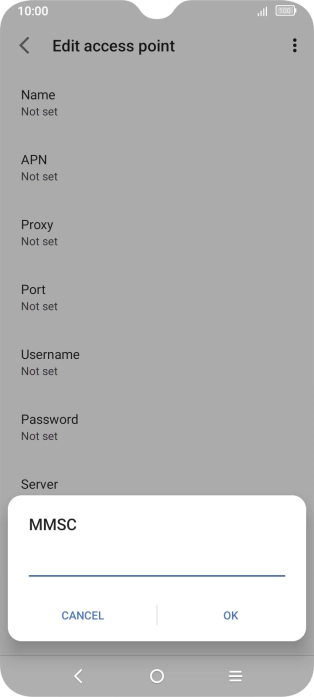

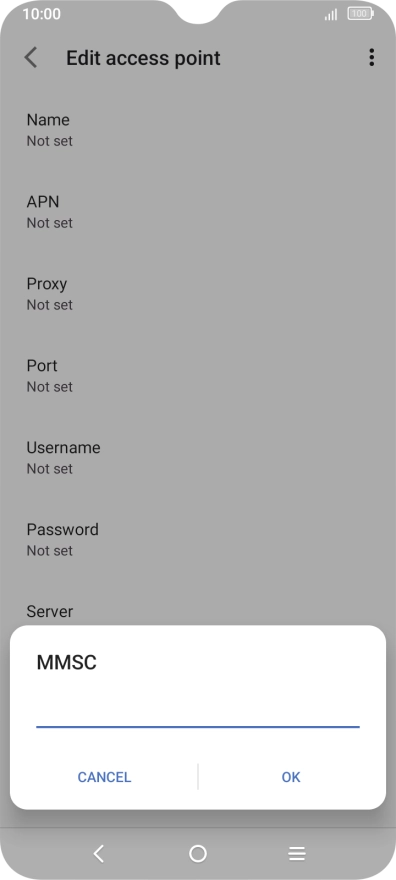

Press MMSC.

http://mms.vodafone.co.uk/servlets/mms
Step 16 of 31

6. Enter picture messaging server

Key in http://mms.vodafone.co.uk/servlets/mms and press OK.

Step 17 of 31

7. Enter IP address

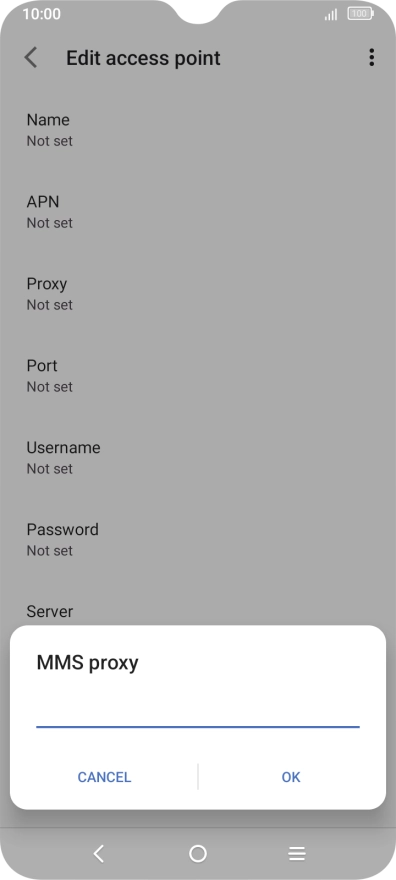

Press MMS proxy.

212.183.137.012
Step 18 of 31

7. Enter IP address

Key in 212.183.137.012 and press OK.

Step 19 of 31

8. Enter port number

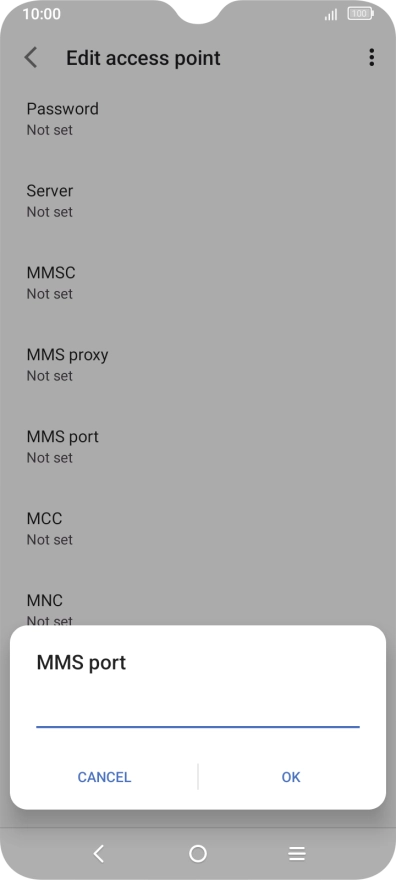

Press MMS port.

8799
Step 20 of 31

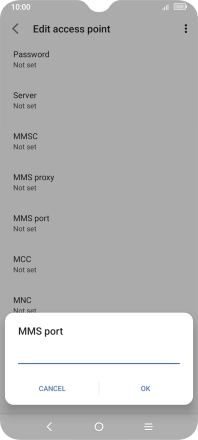

8. Enter port number

Key in 8799 and press OK.

Step 21 of 31

9. Enter country code

Press MCC.

234
Step 22 of 31

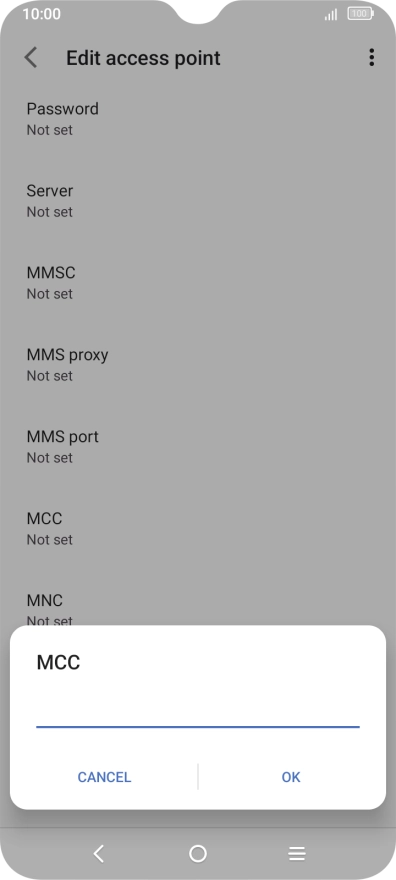

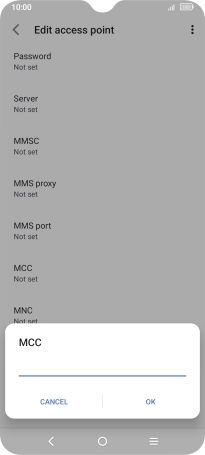

9. Enter country code

Key in 234 and press OK.

Step 23 of 31

10. Enter network code

Press MNC.

15
Step 24 of 31

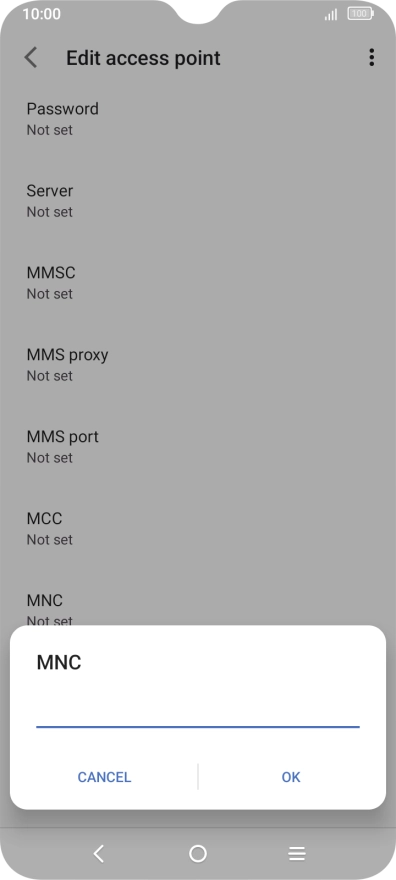

10. Enter network code

Key in 15 and press OK.

Step 25 of 31

11. Select authentication type

Press Authentication type.

Step 26 of 31

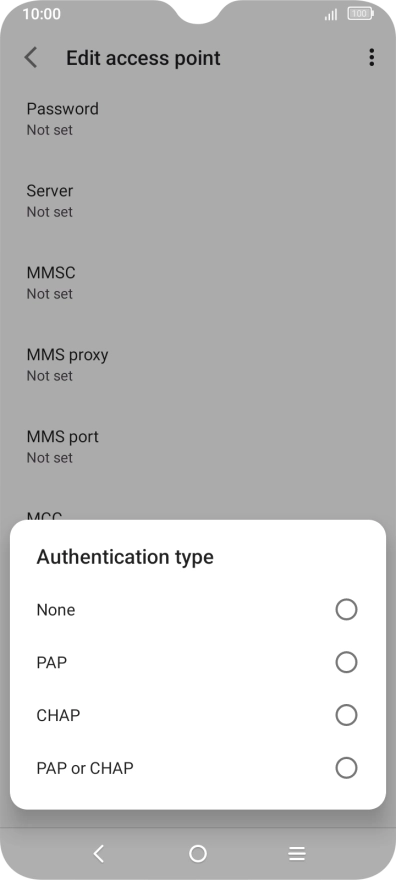

11. Select authentication type

Press None.

Step 27 of 31

12. Enter APN type

Press APN type.

mms
Step 28 of 31

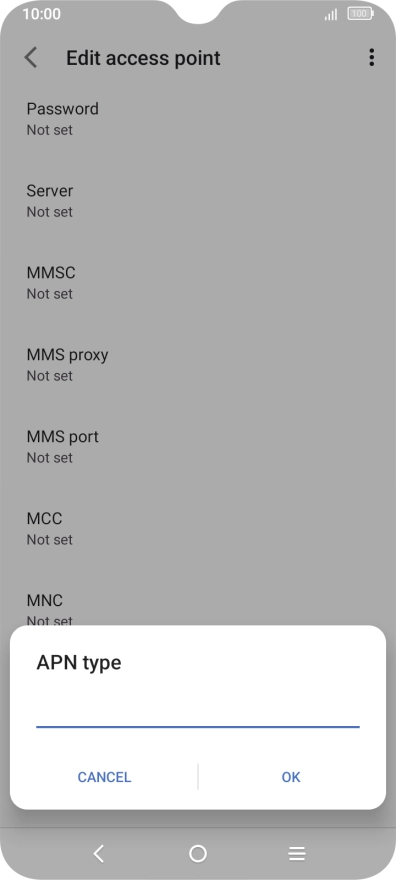

12. Enter APN type

Key in mms and press OK.

Step 29 of 31

13. Save data connection

Press the menu icon.

Step 30 of 31

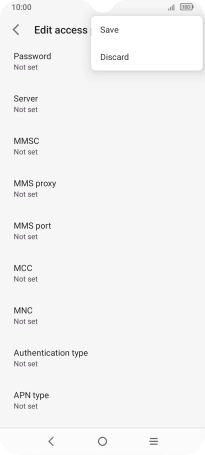

13. Save data connection

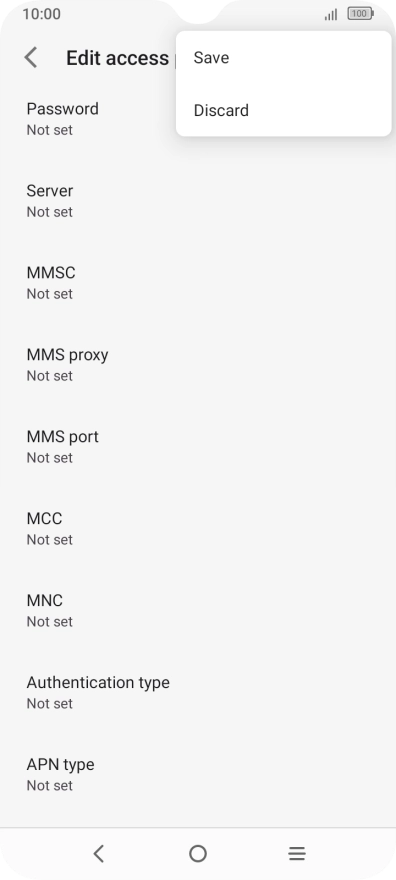

Press Save.

Step 31 of 31

14. Return to the home screen

Press the Home key to return to the home screen.

1. Find "Access Point Names"

Slide two fingers downwards starting from the top of the screen.
Press the settings icon.
Press SIM card & mobile network.
Press the name of the SIM.
Press Access Point Names.

2. Create new data connection

Press the new data connection icon.
Press Name.
Key in Vodafone MMS and press OK.
Vodafone MMS

3. Enter APN

Press APN.
Key in wap.vodafone.co.uk and press OK.
wap.vodafone.co.uk

4. Enter username

Press Username.
Key in wap and press OK.
wap

5. Enter password

Press Password.
Key in wap and press OK.
wap

6. Enter picture messaging server

Press MMSC.
Key in http://mms.vodafone.co.uk/servlets/mms and press OK.
http://mms.vodafone.co.uk/servlets/mms

7. Enter IP address

Press MMS proxy.
Key in 212.183.137.012 and press OK.
212.183.137.012

8. Enter port number

Press MMS port.
Key in 8799 and press OK.
8799

9. Enter country code

Press MCC.
Key in 234 and press OK.
234

10. Enter network code

Press MNC.
Key in 15 and press OK.
15

11. Select authentication type

Press Authentication type.
Press None.

12. Enter APN type

Press APN type.
Key in mms and press OK.
mms

13. Save data connection

Press the menu icon.
Press Save.

14. Return to the home screen

Press the Home key to return to the home screen.
