1. Find "Mobile Data Network"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-3f92c6a7-c936-4d06-9d68-c7bbeb7858fb.png?width=212&height=458)
Press Mobile Service.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-2fcc3186-69a3-4785-99d0-7cc293d035fc.png?width=212&height=458)
Press Mobile Data Network.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-aa89df8b-a277-426b-aaf1-ced57f68352c.png?width=212&height=458)
2. Enter APN

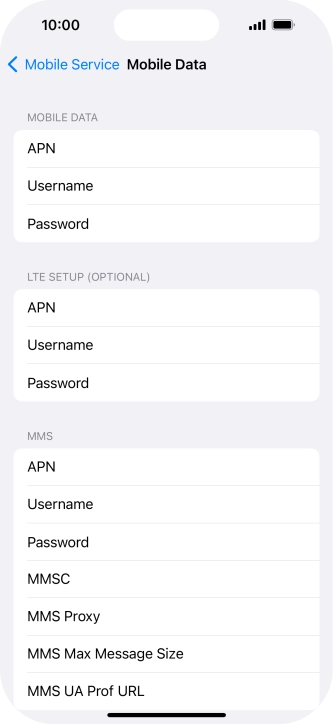

Press APN and key in wap.vodafone.co.uk.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-55429ee2-7297-4d94-b2f4-f75fd96556ea.png?width=212&height=458)
wap.vodafone.co.uk
3. Enter username
Press Username and key in wap.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-55429ee2-7297-4d94-b2f4-f75fd96556ea.png?width=212&height=458)
wap
4. Enter password
Press Password and key in wap.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-55429ee2-7297-4d94-b2f4-f75fd96556ea.png?width=212&height=458)
wap
5. Enter picture messaging server
Press MMSC and key in http://mms.vodafone.co.uk/servlets/mms.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-55429ee2-7297-4d94-b2f4-f75fd96556ea.png?width=212&height=458)
http://mms.vodafone.co.uk/servlets/mms
6. Enter IP address
Press MMS Proxy and key in 212.183.137.012:8799.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-55429ee2-7297-4d94-b2f4-f75fd96556ea.png?width=212&height=458)
212.183.137.012:8799
7. Save settings
Press arrow left.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-55429ee2-7297-4d94-b2f4-f75fd96556ea.png?width=212&height=458)
Slide your finger upwards starting from the bottom of the screen to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-aa89df8b-a277-426b-aaf1-ced57f68352c.png?width=212&height=458)
8. Turn picture messaging on or off
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-3f92c6a7-c936-4d06-9d68-c7bbeb7858fb.png?width=212&height=458)

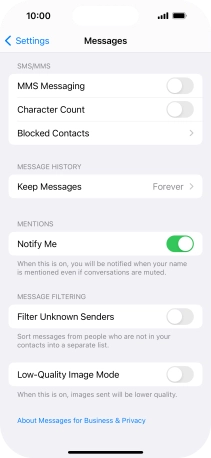

Press Messages.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-e4f3674b-1b69-4237-a8f5-f29b18867d0a.png?width=212&height=458)

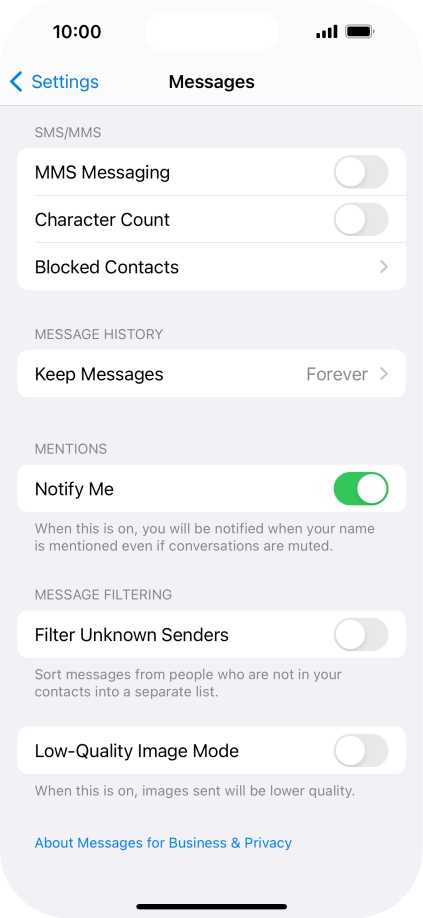

Press the indicator next to "MMS Messaging" to turn on the function.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-22d9be1d-2898-48cd-9780-d0d6d34f6095.png?width=212&height=458)
9. Return to the home screen

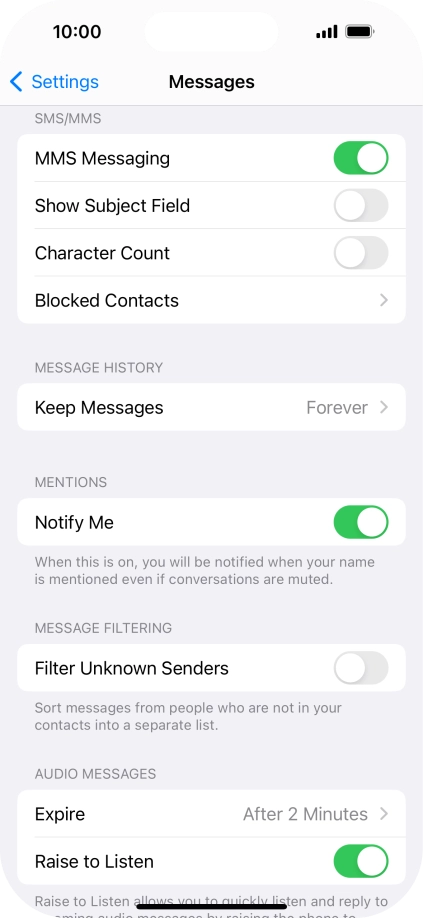

Slide your finger upwards starting from the bottom of the screen to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7151223-f-9170bd6d-35ff-4a23-a458-eaa16641435a.png?width=212&height=458)
